Alstom 160 MW STG Package unused delivered to the US, INCLUDING STANDARD WARRANTY (non-OEM )

1 X 160MW

Steam Turbine Generator Set



INCLUDING

STANDARD WARRANTY

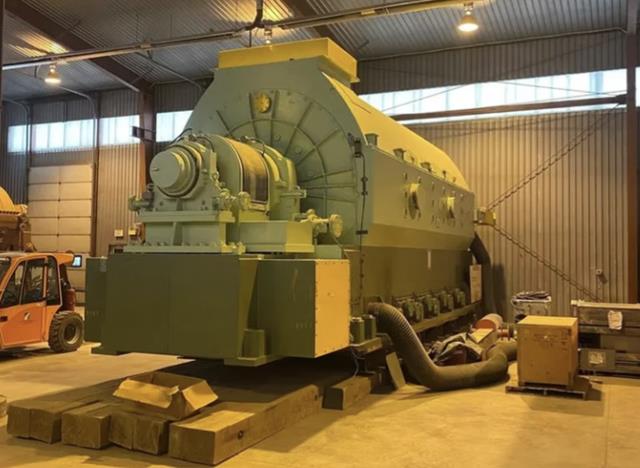

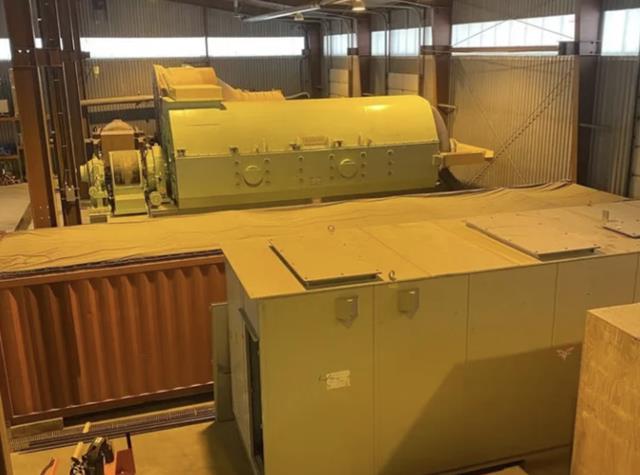

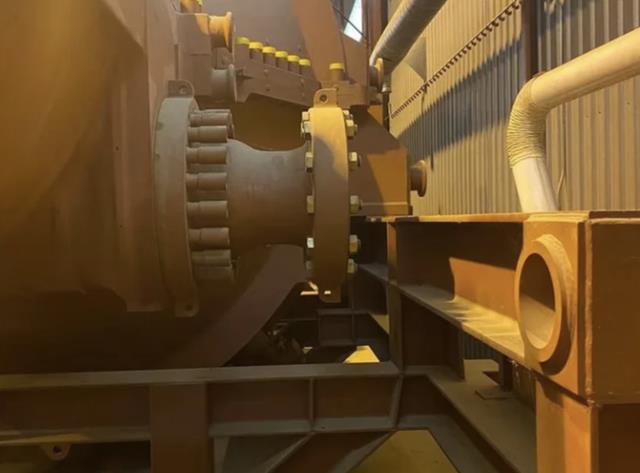

1 X 160MW Alstom Steam Turbine Generator Set



DESCRIPTION:



(Serial Number 60 WY21Z-085)



$ 23.5 million USD

Turbine Assembly



Steam Control Valves and Operators



Gland Sealing Skid



One (1) Generator Package, 18.0kV, 187.65 MVA, TEWAC



One (1) Static Excitation System



Power System Stabilizer



Key Phase



Sound Enclosure with associated lighting, HVAC



Steam Turbine & Generator Accessory Equipment, including controls, HVAC, lighting, fire protection, electrical package, oil systems, etc



Electrical Package including MMCs



Steam Turbine Tools and Maintenance Equipment



Field erection supervision, Alstom to clarify man weeks included (may have expired)



Piping from valves to steam turbine inlets, including some pre-fabricated piping



Steam Inlet Conditions are 1900psia (nominal)/1050 deg F. reheated to 1050 deg. F with maximum throttle flow of 835,000 lbs/hour.



DETAILS:

ISO Rating (MW):



160



Status:



Available



Hours:



0



Condition:



Unused / Never Fired



Year:



2006



Frequency:



60Hz



Size (MVA):



160



OEM:



Alstom / GE
