Siemens, 2020, Biomass Steam Turbine Power Plant, 54 MW, 60 Hz, 13,800 V

Reference V-2927

Brand Siemens

Year built 2020

Condition Used

Quantity 1 plant



Overview

Biomass-fired steam turbine power plant, 54 MW, 60 Hz

Steam turbine and generator: Siemens (Germany)

Year: 2020

Operation started: 2022; stopped: 2024

Excellent condition, low operating hours

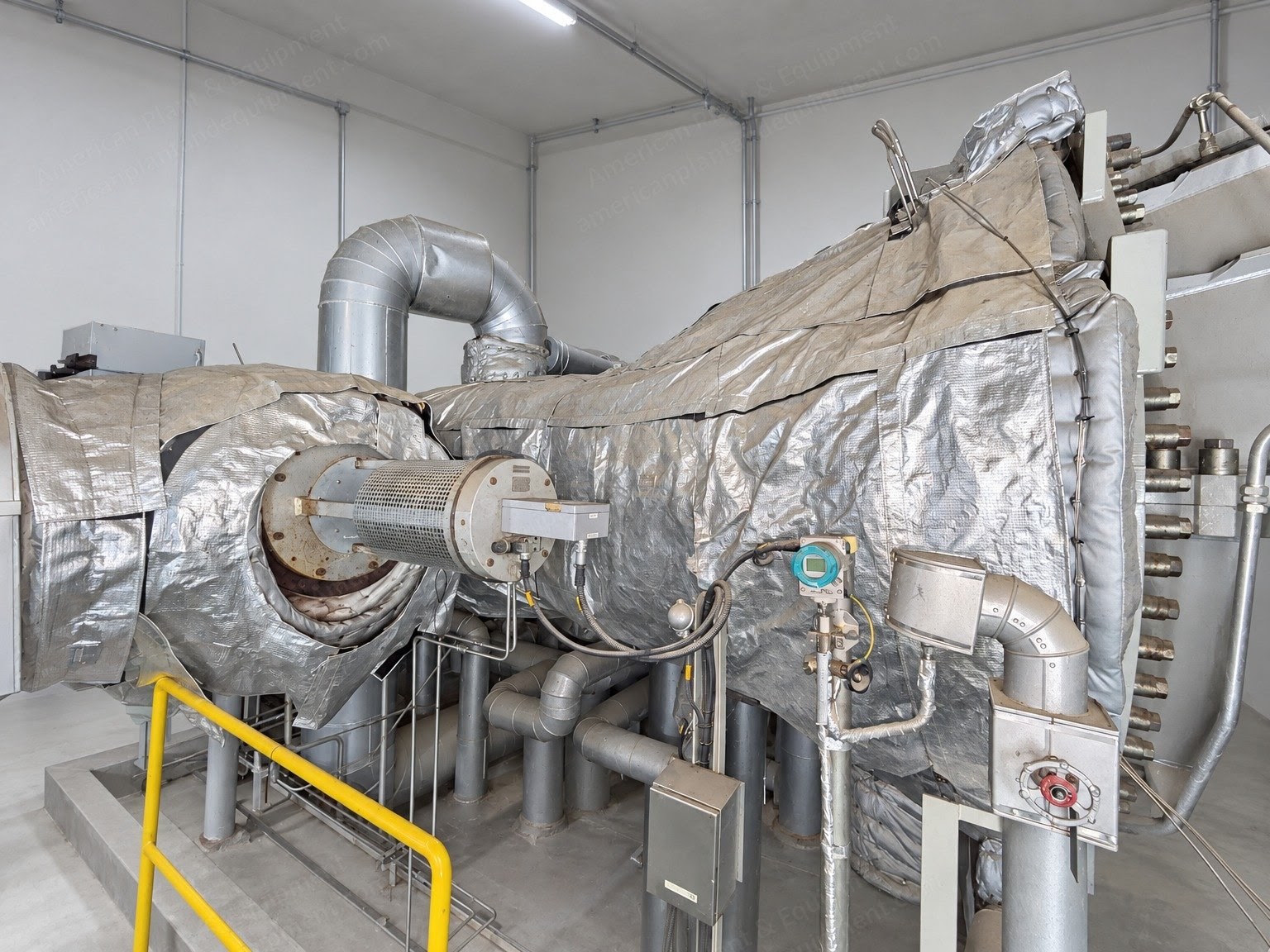

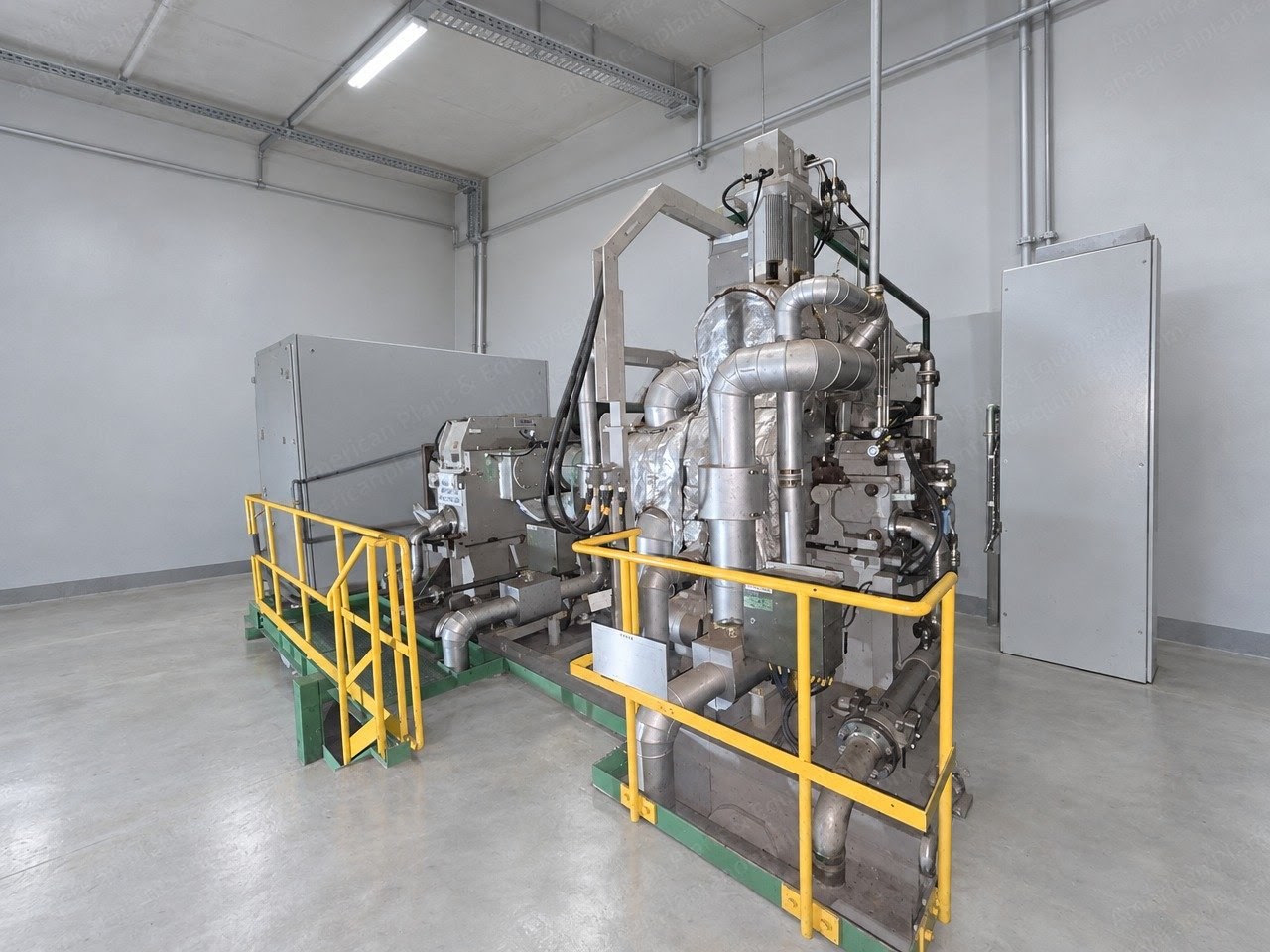

Steam Turbine

Manufacturer: Siemens (Germany)

Year: 2020

Output: 54 MW (rated 54,500 kW)

Type: 2-casing (high-pressure and low-pressure), reheat (exhaust re-heating), axial exhaust, regenerative

Inlet (main) steam pressure: 12.9 MPa (1,871 psi)

Reheat steam pressure: 3.25 MPa (471 psi)

Main steam temperature: 540 °C (1,004 °F)

Reheat steam temperature: 540 °C (1,004 °F)

Speed: 8,370 rpm (high-pressure turbine) / 3,600 rpm (low-pressure turbine)

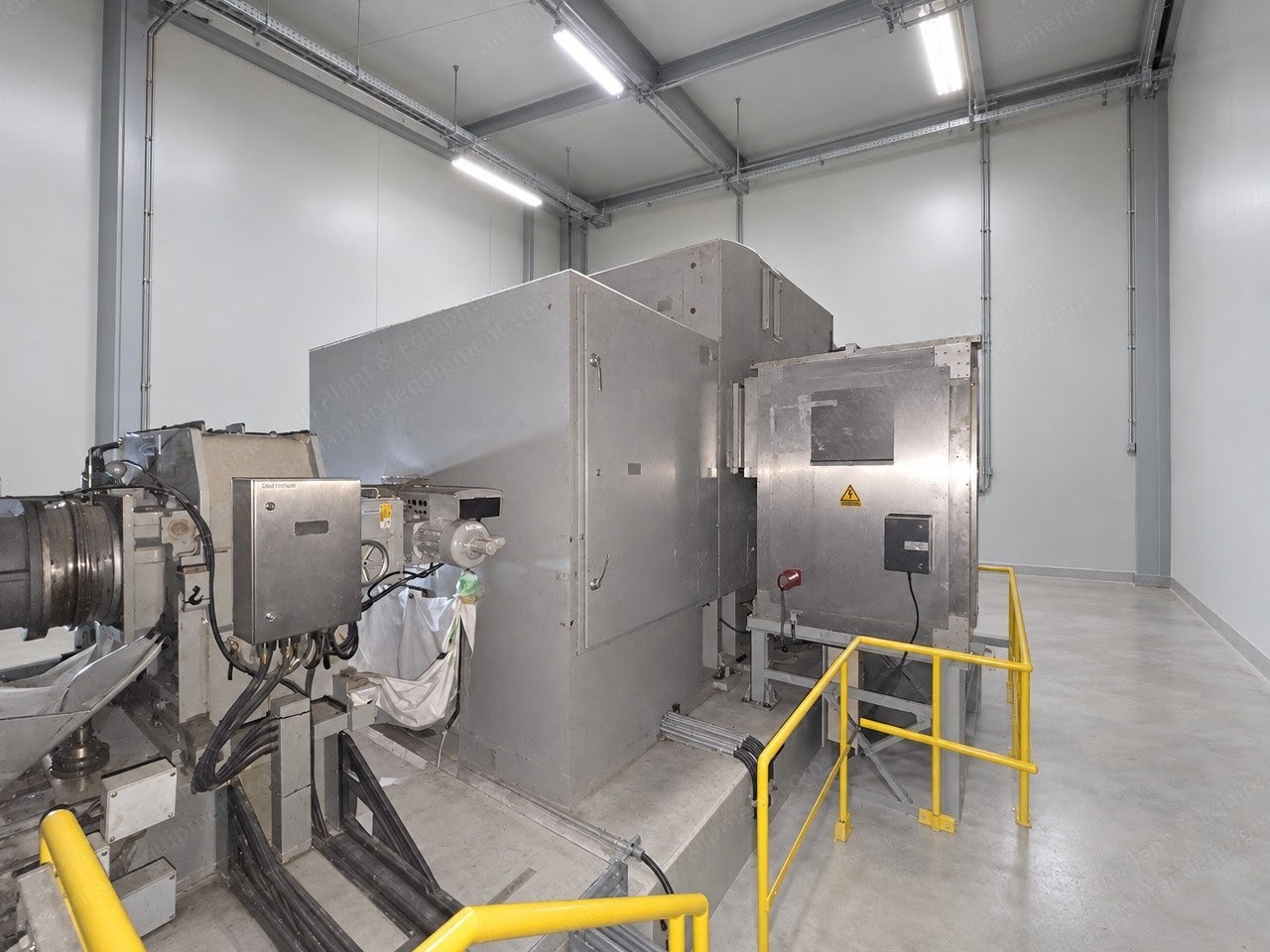

Generator

Manufacturer: Siemens (Germany)

Model: SGen6-100A-2P

Year: 2020

Rated output: 60,555 kVA

Voltage: 13,800 V (+5/-5%)

Rated current: 2,533 A

Power factor: 0.9

Frequency: 60 Hz

Rated speed: 3,600 rpm

Phases: 3

Excitation: self-excitation

Cooling: air cooling, cooling air temperature 51 °C (124 °F)

Insulation class: F (temperature rise to class B)

Degree of protection: IP54

Standard: IEC 60034

Total weight: 105,900 kg (233,469 lb)

Rotor weight: 18,300 kg (40,345 lb)

Price and further only with named end user country
