Mitsubishi, SC1F-29.5AX, 2017, Biomass Steam Turbine Power Plant, 60 MW, 60 Hz, 13,800 V

Reference V-2928

Brand Mitsubishi

Model SC1F-29.5AX

Year built 2017

Condition Used

Quantity 1 plant



Overview

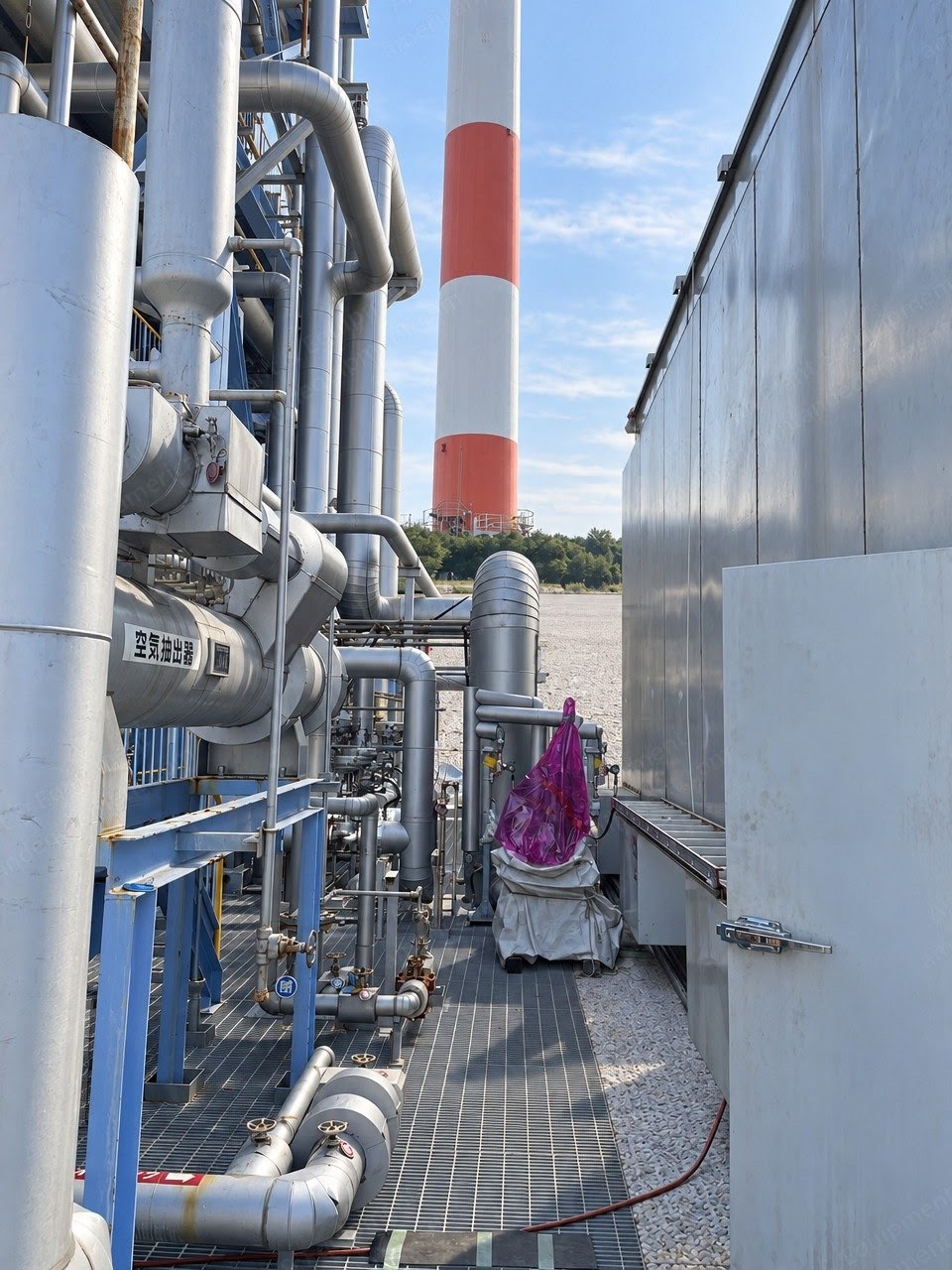

Biomass-fired steam turbine power plant, 60 MW, 60 Hz

Steam turbine: Mitsubishi Hitachi Power Systems, type SC1F-29.5AX

Generator and brushless exciter: Mitsubishi Electric

Year: 2017

Operation started: 2018

Excellent condition, low operating hours

Steam Turbine

Manufacturer: Mitsubishi Hitachi Power Systems

Type: SC1F-29.5AX, condensing turbine, direct-coupled to the generator

Year: 2017

Output (at generator terminal): 60,240 kW

Turbine speed: 3,600 rpm

Main steam inlet pressure: 12.3 MPa (1,784 psi)

Main steam inlet temperature: 538 °C (1,000 °F)

Exhaust pressure: 0.0053 MPa abs (0.77 psia)

Rotation: clockwise (viewed from the generator side)

Generator

Manufacturer: Mitsubishi Electric

Year: 2017

Type: air-cooled synchronous generator

Capacity: 60.24 MW (66,934 kVA)

Voltage: 13,800 V

Current: 2,801 A

Frequency: 60 Hz

Speed: 3,600 rpm

Phases: 3

Poles: 2

Power factor: 0.9

Excitation voltage: 185 V

Field current: 1,005 A

Cooling type: IC8A1W7

Degree of protection: IP54

Insulation: class F (stator and rotor)

Standard: JEC-2130 (2000)

Brushless Exciter

Manufacturer: Mitsubishi Electric

Year: 2017

Capacity: 210 kW

Voltage: 185 V

Current: 1,136 A

Speed: 3,600 rpm



Price and further only with named end user country
