Cummins, KTA50G3, 1250 kW, 50/60 Hz, Diesel Generator Set, 20ft Containerized

Reference TY-2514

Brand Cummins

Model KTA50G3

Condition new

Quantity 40 machines



Overview

New Cummins KTA50G3 diesel generator sets, 1250 kW

All diesel configuration

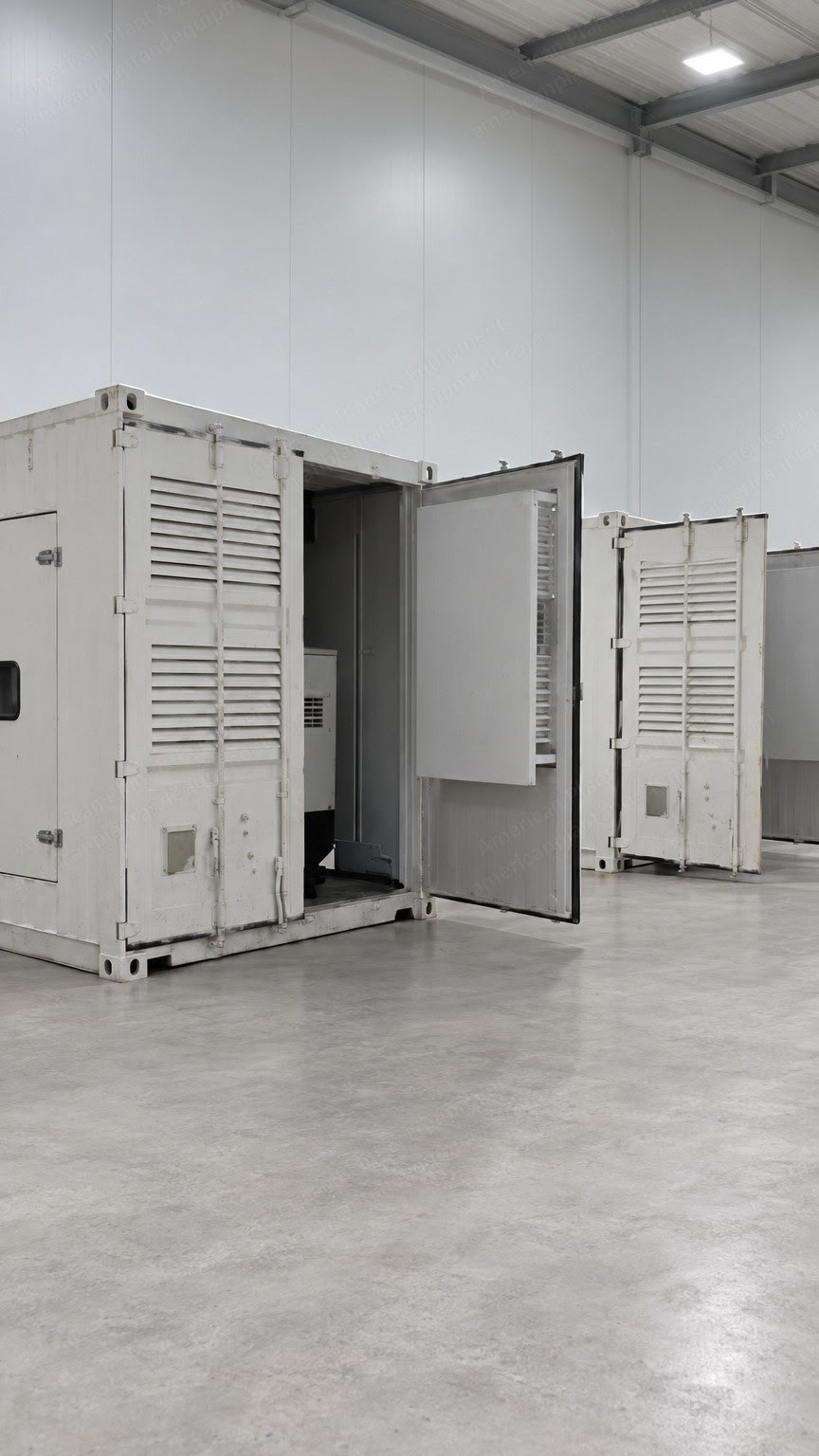

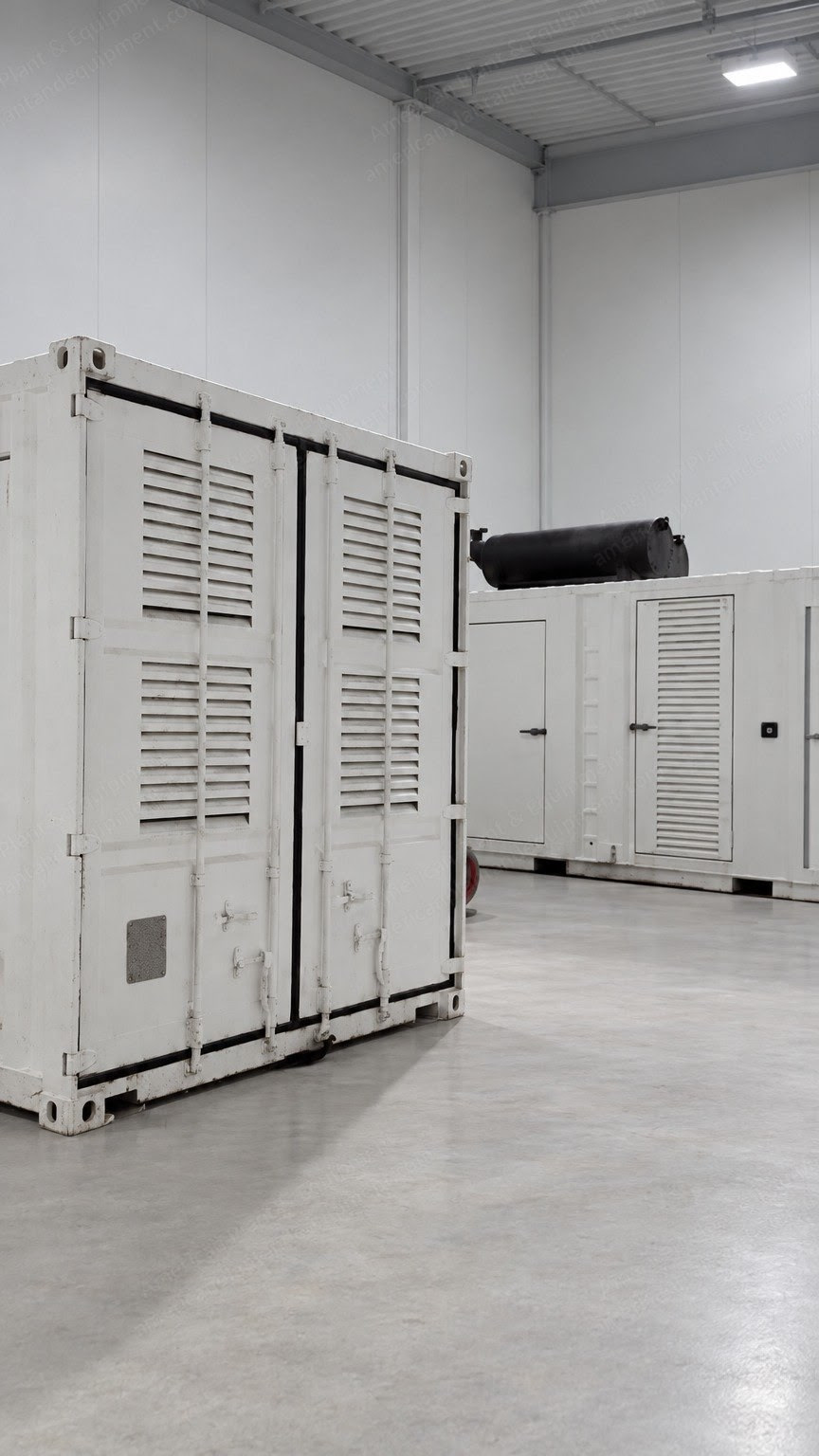

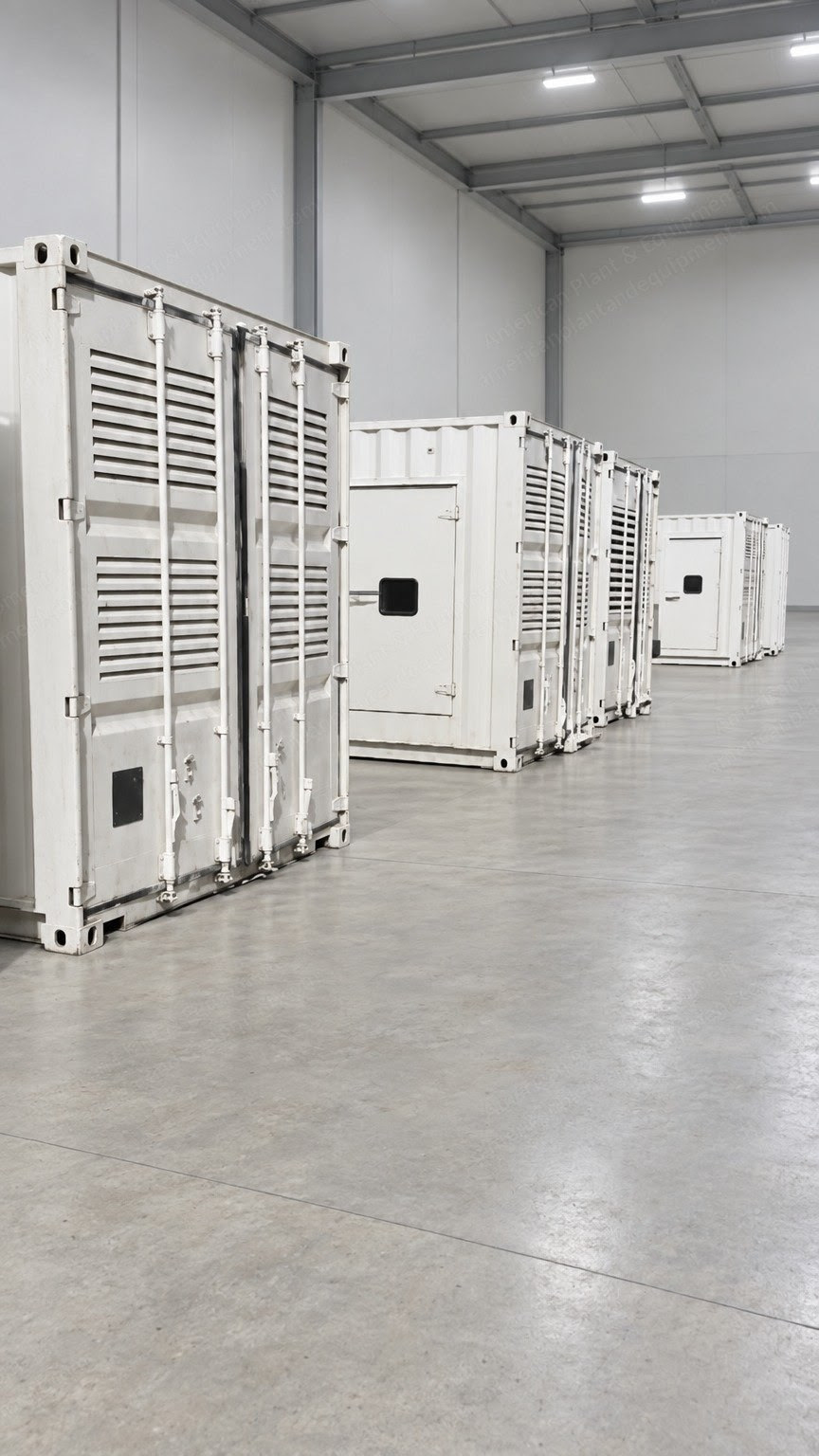

20’ containerized

Frequency 60/50 Hz (configured at the clients request)

Equipped with DeepSea 8610 controller

The KTA50-series benefits from years of technical development and improvement to bring customers an innovative and future proof diesel engine that keeps pace with ever changing generator set requirements.

Features

Coolpac integrated design - products are supplied complete with cooling package and air cleaner kit for a complete power package. Each component has been specifically developed and rigorously tested for G-Drive products, ensuring high performance, durability, and reliability.

Aftercooler – large capacity integral aftercoolers are supplied with cooling water separate from the engine jacket. This provides cooler, denser intake air for more complete combustion and reduced engine stresses for longer life and low exhaust emissions.

Cooling system – a one pump, two loop system must be employed, i.e. the engine jacket is cooled by one radiator or heat exchanger and the aftercoolers are cooled by a separate radiator or heat exchanger.

Pistons – pistons are dual Ni-Resist, aluminum alloy, ground and shaped to compensate for thermal expansion, which assures a precise fit at all normal operating temperatures.

Service and support - G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service network.

General Engine Data

Fuel rating FR6250 (standby) FR6120 (prime)

Type 4 cycle, 60-degree vee, turbocharged, low-temp aftercooled

Bore 159mm (6.25 inches)

Stroke 159mm (6.25 inches)

Displacement 50.3 liters (3067 cubic inches)

Cylinder block 16 cylinder

Battery charging alternator 35 amps

Starting voltage 24-volt, negative ground

Fuel system Cummins PT™ direct injection

Fuel filter dual spin-on paper element fuel filters with standard water separator

Lube oil filter type(s) spin-on full flow filter

Lube oil capacity (L) 177

Flywheel dimensions SAE 0

Coolpac Performance Data

Cooling system design 1 pump / 2 loop

Coolant ratio 50% ethylene glycol; 50% water

Coolant capacity (L) 152.0

Limiting ambient temp. (°C) 55.6 (50Hz); 51.0 (60Hz)

Fan power (kWm) 21.0 (50Hz); 36.0 (60Hz)

Cooling system air flow (m3/s) 30.3 (50Hz); 34.6 (60Hz)

Air cleaner type dry replaceable element with restriction indicator

Weights And Dimensions (Engine)

Length 3275mm (128.9 in)

Width 2000mm (78.7 in)

Height 2200mm (86.6 in)

Weight (dry) 5900 kg (13,007 lb)

Ratings Definitions

Emergency standby power (ESP): applicable for supplying power continuously to varying electrical loads for the duration of power interruption of a reliable utility. Emergency standby power (ESP) is in accordance with ISO 8528 and ISO 3046-1, obtained and corrected in accordance with ISO 15550).

Limited-time running power (LTP): applicable for supplying power to a constant electrical load for limited hours. Limited-time running power (LTP) is in accordance with ISO 8528.

Prime power (PRP): applicable for supplying power to varying electrical load for unlimited hours. Prime power (PRP) is in accordance with ISO 8528. Ten percent overload capability is available in accordance with ISO 3046-1. Data shown above represents gross engine performance and capabilities as per ISO 3046-1, obtained and corrected in accordance with ISO 15550.

Base load (continuous) power (COP): applicable for supplying power continuously to a constant load up to the full output rating for unlimited hours. No sustained overload capability is available for this rating. Consult authorized distributor for rating. (Equivalent to continuous power in accordance with ISO 8528 and ISO 3046-1, obtained and corrected in accordance with ISO 15550).

Quantity

Quantity: 40 units available
