FOR SALE :



Used Complete double concrete system (large system)



AGE BETWEEN 1-10 YEARS (SEVERAL COMPONENTS)



READY FOR IMMEDIATE USE



THE PLANT WOULD HAVE TO BE DISMOUNTED BY THE POTENTIAL BUYER

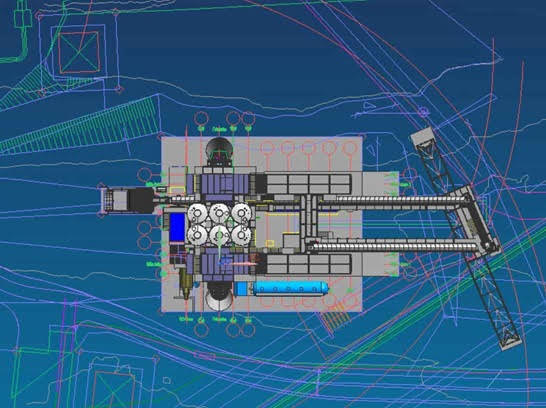

Complete double concrete system (large system)

2 systems combined into one large system

Mobile, modular design, reinforced construction due to exposed location against increased snow and avalanche loads

Total production approx. 225,000 m3

Installed output approx. 570 kW

Material feed by truck (25 t) or wheel loader, grain size 0... 120 mm for both concrete mixing plants 1 feeding system for the individual aggregate chambers, with the respective aggregate groups via tipping hopper (20 m³) and troughed belt conveyor system, aggregate storage 1,600 m3 (2 x 800 m3), 6 chambers per plant, 0/4 (200 m3) / 4/8 (80 m3) /8/16 (120 m3) / 16/32 (100 m3) / 32/63 (200 m3) 63/120 (100 m3), material discharge from chambers with conveyor belt, dosing gates or conveyor chute, material pockets in chambers 32/63 and 63/120, vibrators at dosing gates, air cannons in sand chambers, GB 1200 mm collecting weighing belt at load cells (max. 8000 kg), Mixer feed via elevator tipping bucket, binder storage 6 silos (total storage volume = 840 m3 ? 1000 t) 4 silos for cement, 2 silos for fly ash, additional binder storage 8 tanks with a total volume of 32000 l (2 x 4 tanks of 4000 l each), mixer 2 pcs. (mixer design for grain sizes up to 135 mm), BHS, DKX 3. 50, twin-shaft compulsory mixer, drive power = 2 x 75 kW, dry filling volume 5,250 l, hardened concrete output 3.5 m3 per batch, central lubrication and hydraulic mixer discharge with extra-large opening, Sauter GmbH plant control system, setup designed as a double mixing plant control system. Some components are not duplicated, but are dimensioned so that both mixing systems of the large plant are covered at the same time. These include oil heating (hot water addition, plant heating, component heating), high-pressure cleaning system, residual concrete washing system, RC water module and concrete discharge via collecting conveyor belt with concrete discharge on both sides to truck mixer or crane bucket (7 m3).



Further details and photos upon request!



Used and without any guarantee!



DESPITE OF UTMOST ACCURATENESS; MISTAKES IN THE DESCRIPTION TEXT REGRETFULLY CANNOT BE AVOIDED COMPLETELY!



THE DESCRIPTION OF THE EQUIPMENT IS BASED ON THE DATA GIVEN BY THE OWNER / SUPPLIER!



THERE IS NO GUARANTEE FOR IT’S CORRECTNESS



Price: 4.995.000,00 € + MwSt ex stock in EUROPE; net, duty



unpaid, Incoterms 2010, unpacked

---

---

---
