3 x T70 Solar (solonox) Available for immediate shipping



3 x T70 Solar Turbines (Used) which are located in Pakistan On As is Where is Basis.

3 Gas Turbine base Plant Description

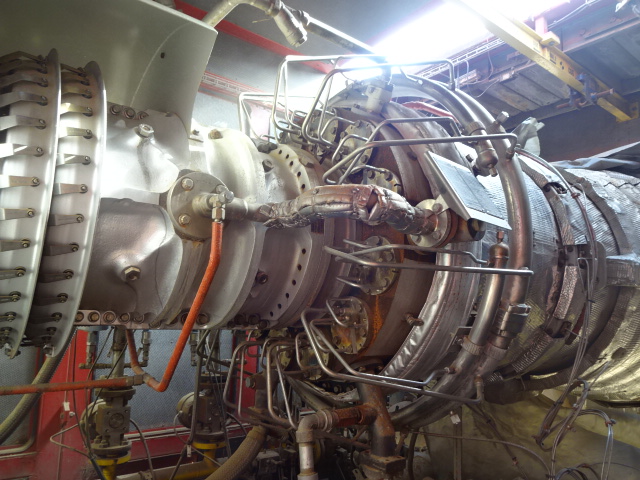

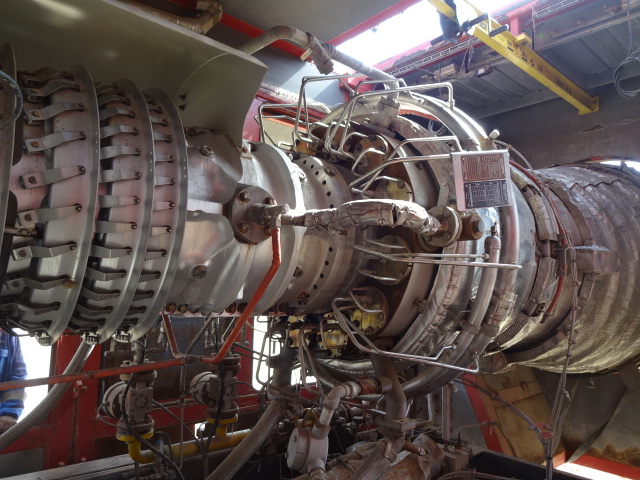

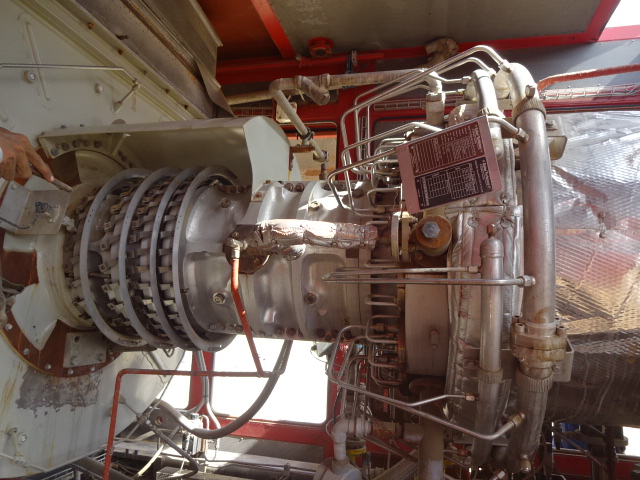

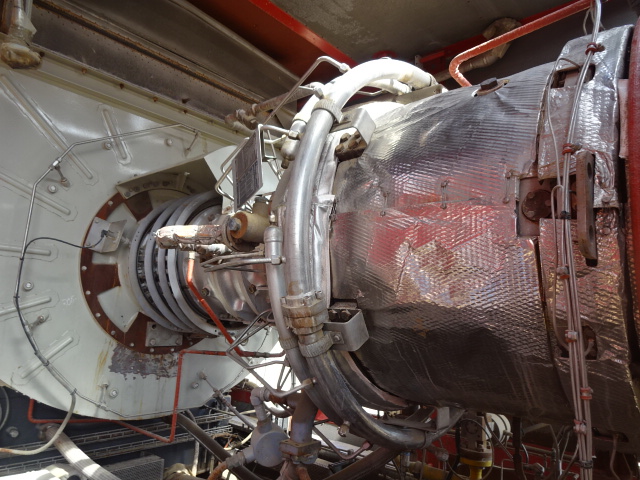

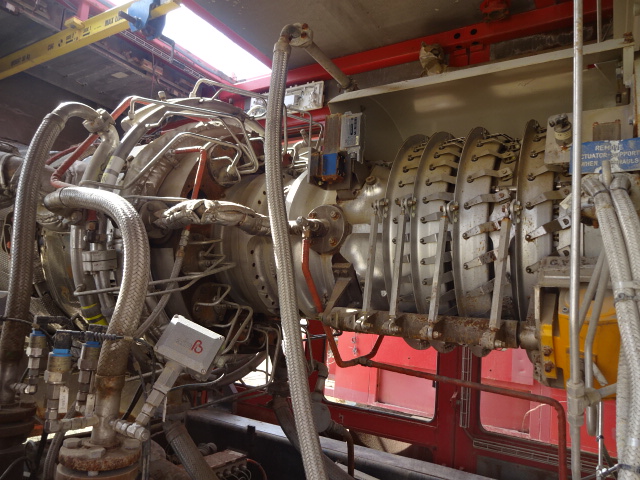

There are three TAURUS 70 gas turbines which are designed for industrial service in electrical power generation applications; it is a single shaft, axial flow design consisting of air inlet assembly, compressor assembly, compressor diffuser assembly, annular combustor assembly, turbine assembly, exhaust diffuser assembly and exhaust collector assembly.



The turbine drives the compressor, gear unit and driven equipment from the front end of the engine, utilizing the compressor rotor as the engine output shaft.



Current Status;



Gas Turbine Specifications:



Manufacturer SOLAR



Model Taurus 70 (T-10301)



Operation continuous



Turbine design open cycle, single shaft, cold-end drive



Compressor 14 stages, axial



Compression ratio 16 : 1



Combustion chamber annular with 12 injectors, SoLoNOx system



Turbine 3 stage, axial-reaction



Turbine speed 15 143 rpm



Nominal shaft power rating 7 825 kW



Heat input 22 245 kJ/s



Turbine air inlet flow 26.3 kg/s



Exhaust gas temperature 486 °C



Exhaust gas mass flow 26.93 kg/s



Thrust bearing tilting pad type



Please note that the asking price is USD 1.575 million (for each unit)



SCOPE includes the following:



Turbine Rotor



Gear Box

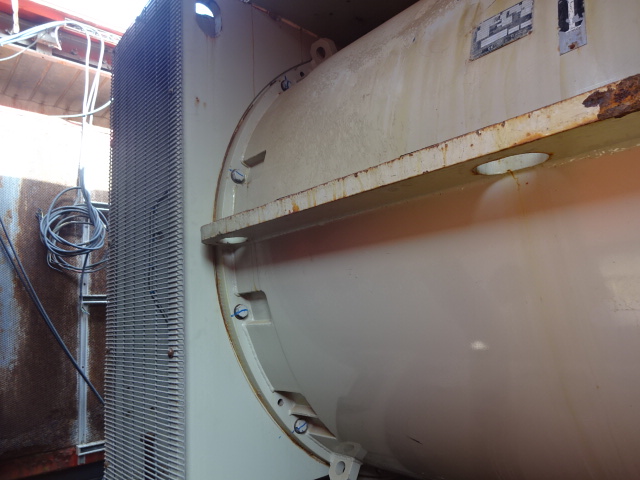

Alternator



Control accessories as installed by OEM

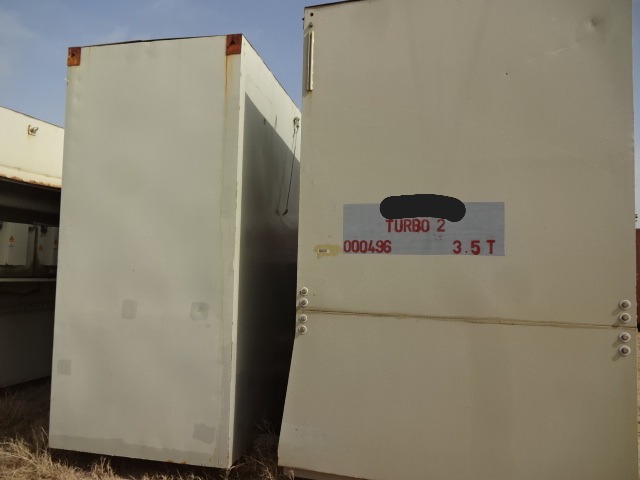

GT Canopy



MV and LV Electrical Panels



Ventilation ducts

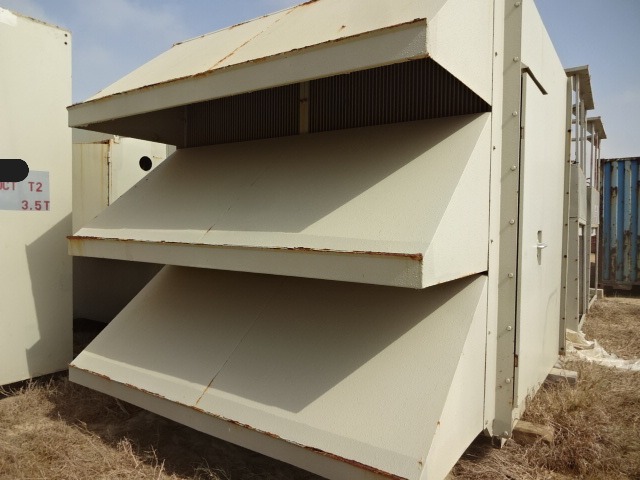

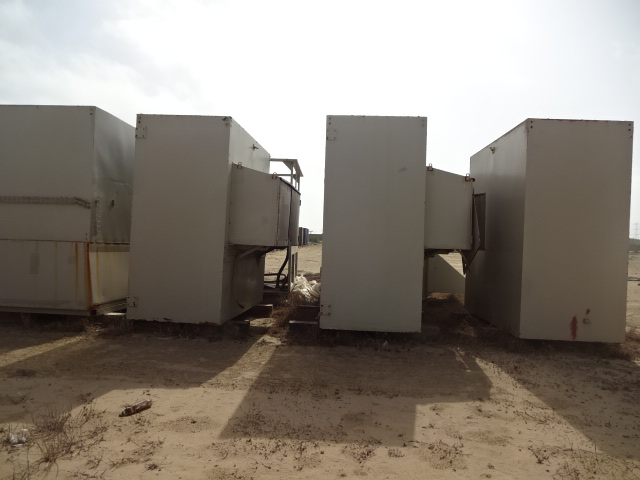

Inlet filter enclosure



Control system

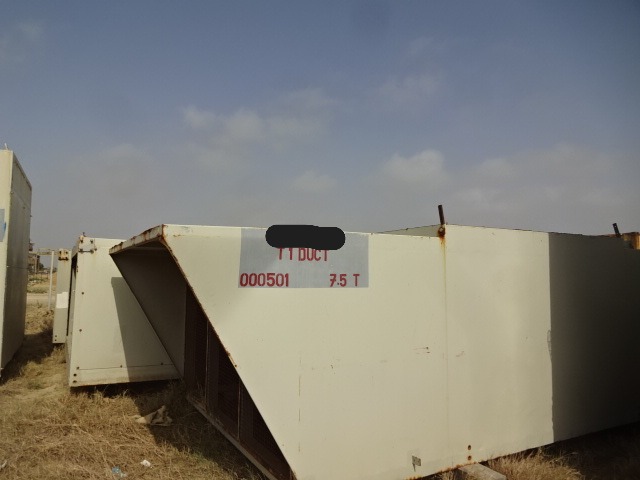

Intake air and exhaust ducts



Exhaust stacks (one per turbine)



O&M Manuals



*****No Maintenance Reports.



Idle Since: 2014****

---

---

---
