New FMC Subsea X-Trees x 2 FOR SALE

We can propose for sale the attached FMC Subsea Trees. For subsea wellhead production.



Oil Production from the Seabed



2 FMC Unused Subsea Completion Trees are available i should you be interested.



Both having the SCMs installed. New unused located in the UK for inspections.

Price on request. They will be around half the original price.



LOT 1

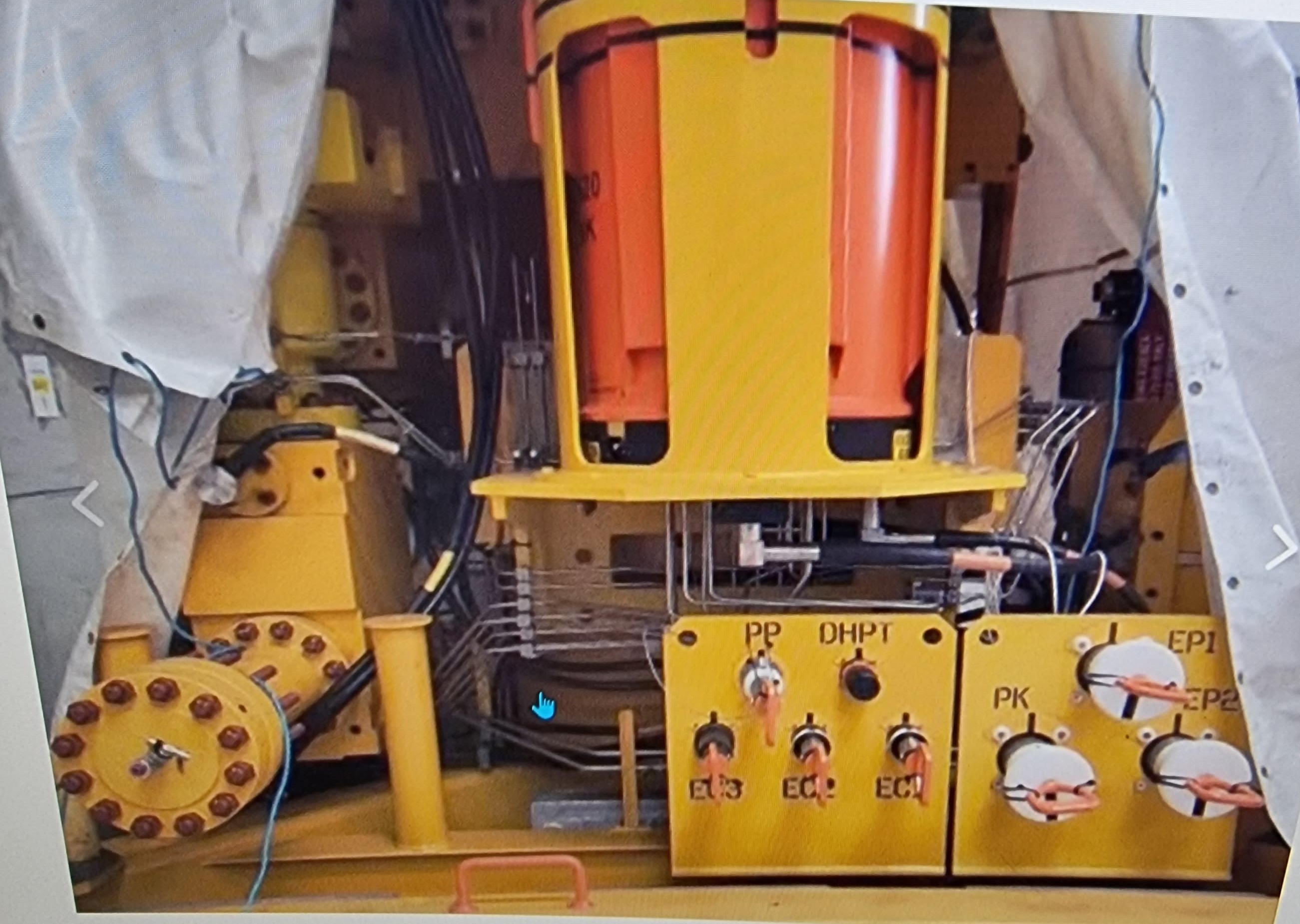

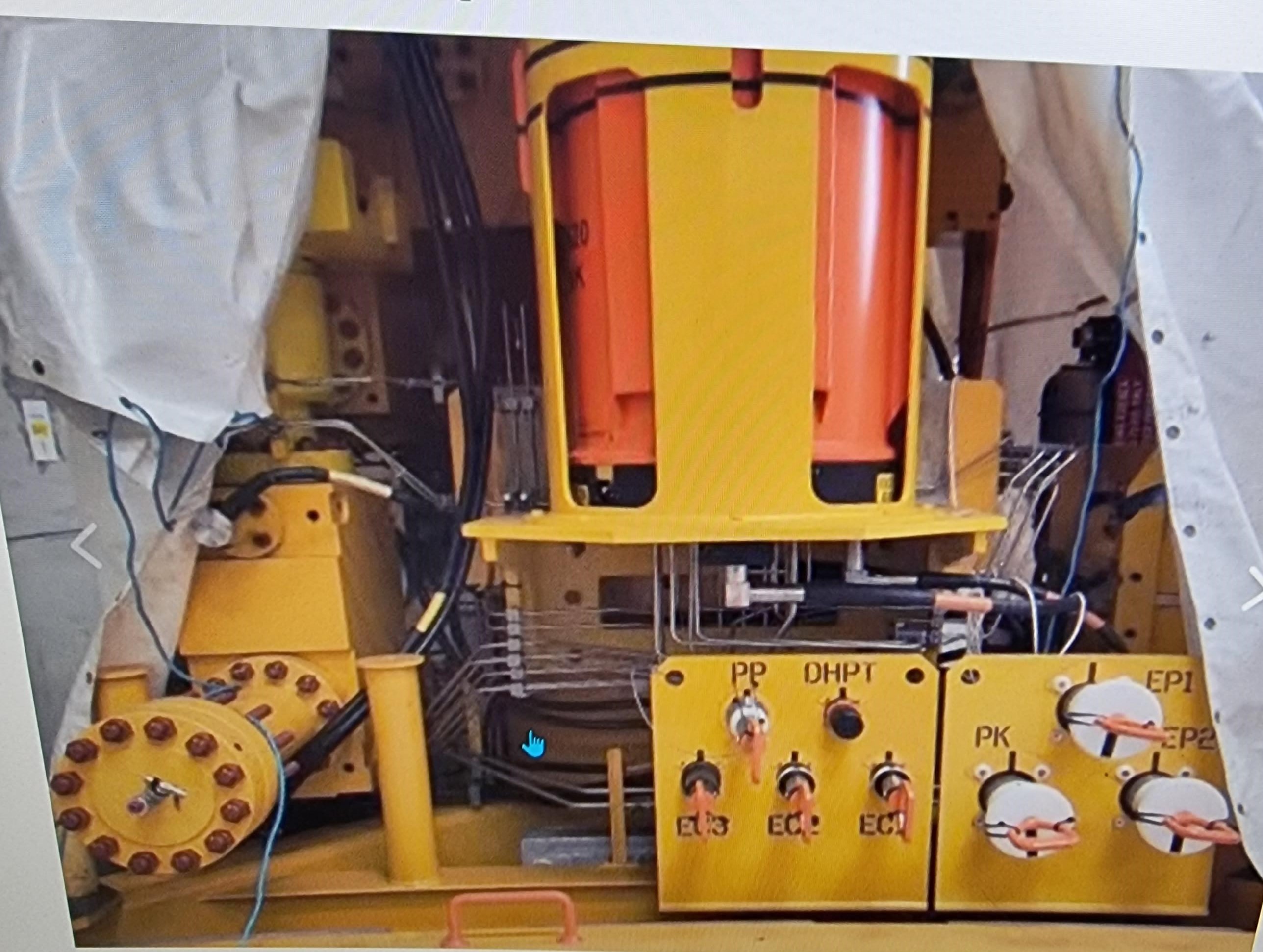

One (1) New and Unused ESP Xmas Tree System (delivered in July 2020) comprising:



· One (1) New and Unused TechnipFMC EHXT2 ASSY 5-1/8 X 2-1/16 5K, 18-3/4 TORUS IV 15K BTM X 18-3/4 H4 TOP Subsea ESP XMAS Tree Assembly, SI 913 compliant; and



· One (1) New and Unused TechnipFMC MK II 620 Subsea Control Module (SCM) (FITTED); and



· One (1) New and Unused Fishing Friendly Structure (FFS) with Canopy



1. SUBSEA TREE SYSTEM DESCRIPTION:



Qty Description



1 18-3/4” Horizontal Subsea System configured for dual ESP completions



1 SCM & SCMMB



1 Dual ESP Tubing Hanger System



1 MQC Bridging Plate



1 MQC Tree System Outboard Flushing Plate



1 MQC IWOCS Parking Plate



1 MQC Flying ISOWCS stab plates



1 Tronic DHPT Flying Connectors



1 Diamould Tubing Hanger feed through components



1 Diamould Xmas tree and JDM electrical jumper cables



1 DG O Brien DHPT Gauge Tubing Hanger feed through system



1 Tree system inboard MQC plates



1 PT/TT sensors c/w harnesses to SCMMB



Table



Description automatically generated



2. WELLHEAD SYSTEM INTERFACE



Tree guide funnel / isolation sleeve designed to interface with Baker Hughes MS700 design with enhanced 36.00” LP Wellhead housing..



3. TEMPERATURE RATING



The Subsea Tree rated to Temperature Class U, (2degC to 121degC).



Choke and internals specified as Temperature Class P-U, (-29degC to 121degC).



4. METALLURGY



The base components of the Subsea Tree System material specification comply with the following:



i. Production wetted – H-H



ii. Production Valves – H-H



iii. Crossover – E-E



iv. Annulus – E-E



v. Annulus Valves – F-F



vi. Production Choke – H-H



5. TUBING HANGER PENETRATIONS, (DHSV, DHCI, DHPT)



Tubing hanger configured for dual ESP artificial lift, with 3 x hydraulic control line penetrations for the DHSV and two DHCIVs. The tubing hanger also accommodates 1 x electrical feedthrough for a DHPT gauge.



6. TREE CHEMICAL INJECTION (CIV)



The production wing block accommodates two independent penetrations (CIV1 & CIV 2) between the PMV, PWV and XOV complete with associated fail-safe actuated gate valves and inboard check valves.



The production isolation valve block accommodates one independent penetration (CIV3) between the choke and outlet flange complete with associated fail-safe actuated gate valve and inboard check valve.



7. DHPT



The Subsea Tree System is configured to incorporate a Tronic DHPT connector to allow communication with the downhole gauge during system installation at surface on the drilling MODU independently of the SCM / SCMMB.



8. PT/TT SENSORS



Pressure and Temperature Sensors with dual redundancy complete with associated harnesses back to the SCMMB at the following locations:



i. Between PMV and PWV



ii. Between Choke and FIV



iii. Between AMV and AAV



9. SCM / SCMMB



The SCM will control the hydraulic valve actuators at the Subsea Tree and relevant valves on the manifold. The system control fluid is Oceanic HW443 / HW443R



10. SEABED PRESSURE SENSOR



The Subsea Tree System can incorporate seabed pressure sensors with outputs communicated via the SCM to the surface MCS display.



11. WEIGHTS AND DIMENSIONS



· Subsea Tree c/s SCM:



- Dimensions: 151.88" Long x 149.84" Wide x 172.52" High, Weight (in air) 35,596 KG



· Over-trawlable Fishing Friendly Structure (FFS) c/w Canopy:



- FFS structure: 193.87" Long x 193.87" Wide x 140.81" High, Weight (in air) 30,977 KG



- FFS canopy: 117.82" Long x 136.52" Wide x 70" High, Weight (in air) 3010 KG
