Jack up Rig ready for sale

Dear Sir, FYI. please find attached and enclosed rig for sale in Turkey.

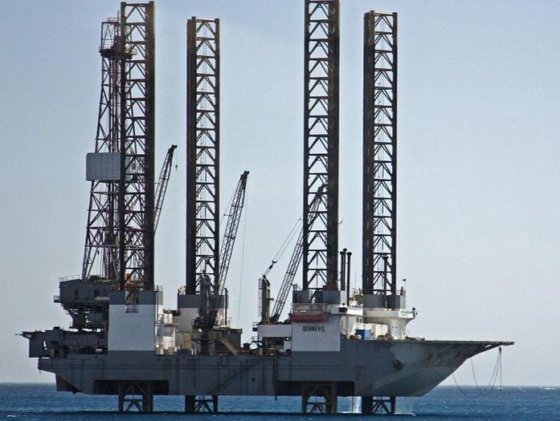

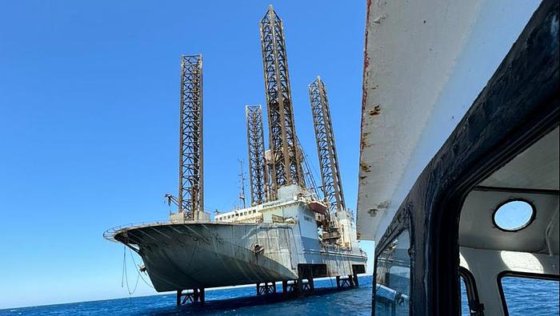

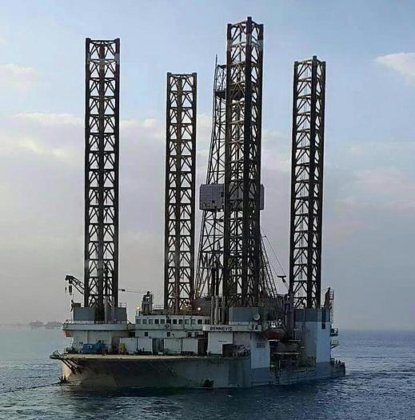

1971 UPPER CLYDE JACK UP RIG - 2000 HP

Date: 2026 | Price: $30 Million



1. GENERAL DATA

Item Specification

Type Jack Up, 4 Legs, Triangular Hull, Cantilever

Year Built 1971 - Upper Clyde Shipbuilders

Status Currently Laid Up

Last Inspection Dec 2017

Operating Water Depth 250 - 300 ft

Air Gap 50 - 60 ft

2. DIMENSIONS

Item Value

Hull Length 286 ft

Hull Width 272 ft

Hull Depth 21 ft

Leg Length 356 ft

Derrick Height 160 ft - Lee C. Moore

3. DRILLING EQUIPMENT - QUANTITY

Equipment Qty Spec

Drawworks 1 2000 HP

Mud Pumps Triplex 3 1600 HP each

Rotary Table 1 49.5"

Top Drive 1 -

Shale Shakers 4 -

BOP Stack 1 18-3/4" 10K/15K

Hookload Capacity 1 750,000 - 1,000,000 lbs

4. JACKING SYSTEM

Item Qty Spec

Triangular Truss Legs 4 356 ft each

Spud Cans 4 -

Jacking Type - Rack & Pinion

5. TERMS



List of equipment (IDCA,

??JackUp_1971_Equipment_Liist



Category Equipment Specs

Drilling Drawworks 2000 HP

Drilling Mud Pumps 3x Triplex, 1600 HP each

Drilling Top Drive 350-500 ton capacity

Drilling Rotary Table 37.5" / 49.5"

Drilling BOP Stack 18-3/4", 10K / 15K, annular + ram

Drilling Shale Shakers 4-5 units

Drilling Derrick 150-170 ft, 750k-1M lbs hookload

Jacking System Legs 4 legs, triangular hull

Jacking System Jacking Type Rack & pinion / hydraulic

Jacking System Water Depth 250-300 ft working

Jacking System Air Gap 50-60 ft

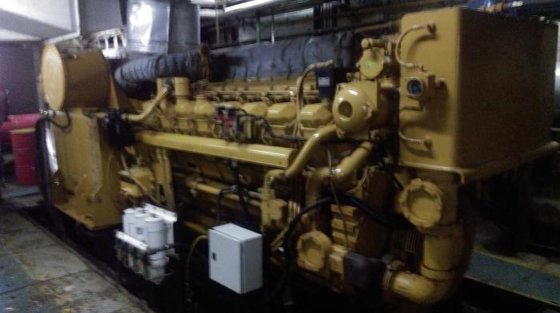

Power Generators 6-8x Diesel, 1000-1500 kW each

Marine Cranes 2x 50-100 ton pedestal cranes

Marine Accommodation 80-120 persons

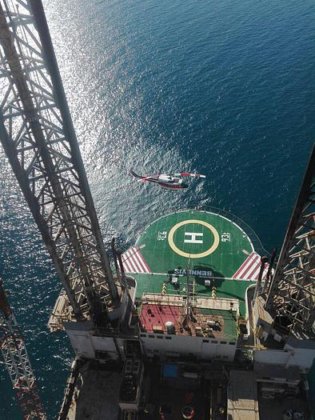

Marine Helideck Sikorsky S-61 / AW139 approved

Safety Lifeboats 2x freefall / davit launched

Safety Fire System Hi-fog + CO2

Navigation DP System DP-0

Navigation Communication Radar, GMDSS
