We can offer Kawasaki Gas turbine generator

L30A 34mw 60hz 2020 in Japan.

Price can inform around of Mid Sep.2026.

Pls check whether end user is interested in this L30A in Japan and let us know asap



DESCRIPTION:

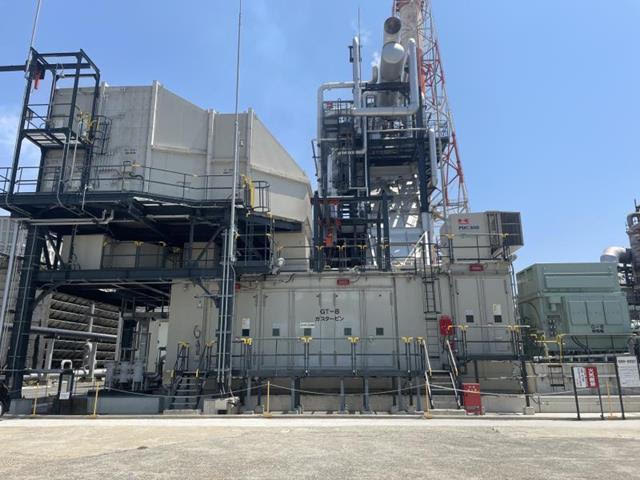

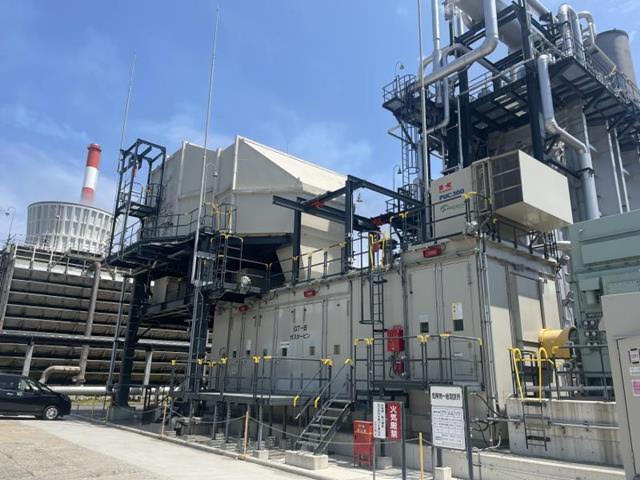

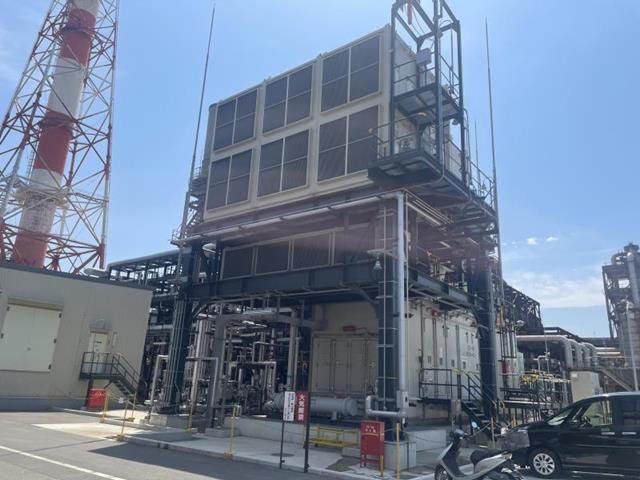

Reportedly very little used 34000 kW Kawasaki Gas Turbine Power Plant. Manufacturer: Kawasaki (Japan) Manufacturing year: August, 2020 Type: Co-Generation

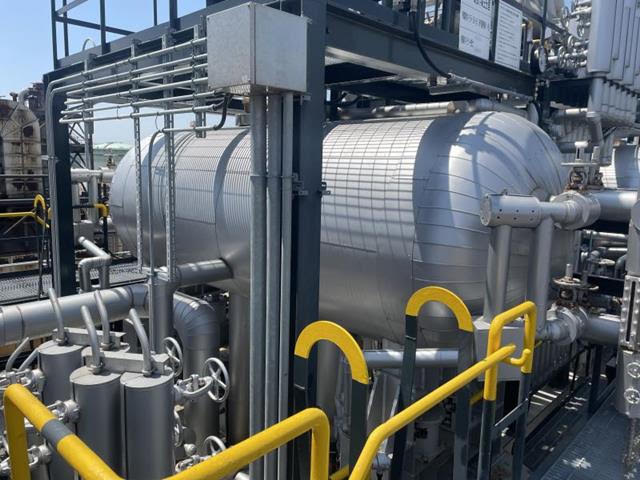

Still in operation, new in 2020, commercial operation starts in 08/2021, to be shut down at 03/2024. Operating hours 13,298 hours was at 16:00 on May 25, 2023. Expecting total operation hours to 03, 2024 to be around 20,000 hours. There is a steam generator (boiler) that produces steam using exhaust gas. Steam product: 31.2 tph at 7 MPaG, 9 tph at 1.6MPaG, last maintenance was in March, 2023, number of start-up: 66 times.

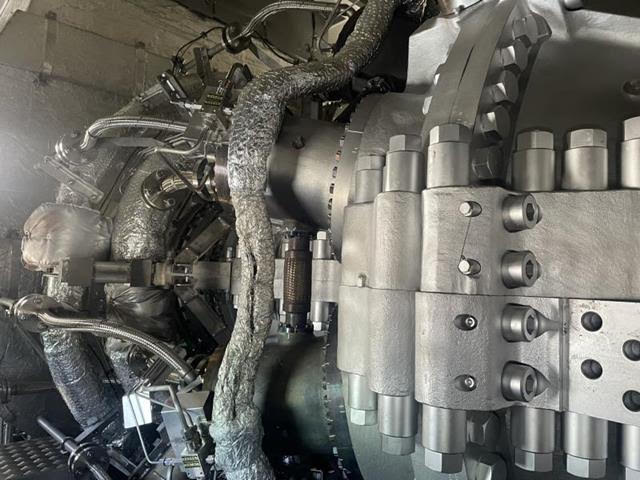

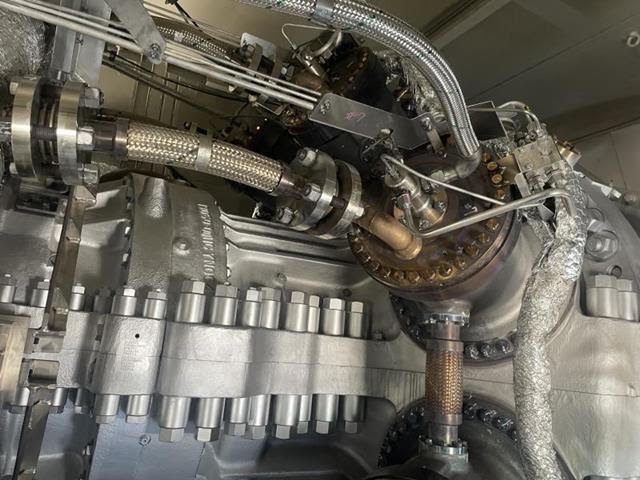

a. Gas Turbine Manufacturer: Kawasaki (Japan) Manufacturing year: August 2020 Condition: little used Model: L30A Fuel: Gas Electric Output(kWe): 34MW Type: Simple open cycle, Two-shaft Compressor: Axial flow 14-stage Combustor: 8-can RPM: 5576 Pressure ratio 24.5 Exhaust gas temperature: 502 °C Heat rate: 8930(Kj/kW-hr) Exhaust gas mass flow: 333.3(x 1000kg/h) LHV of Fuel: 35.9(MJ/Nm3) Thermal efficiency: 41.2% Heat recovery efficiency: 46.1% Total LHV thermal efficiency: 85.5% Overhaul intervals: 6 years Required space for Turbine system +Alternator system: approx. 11m x 25m x11m (Maximum height of air inlet) Eco-friendly low NOx emissions: NOx reduction method: DLE (Dry Low Emission), NOx: 15 ppm(15%=O2), Operating range of DLE (Dry Low Emission): 70~100%



b. Alternator Manufacturer: Meiden (Japan) Manufacturing year: 2020 Condition: A little used Type: Synchronous Rated power: 37,945kVA Rated current: 1992A RPM: 1800 Voltage: 11,000 V Frequency: 60 Hz Phase: 3 Poles: 4 Power factor: 0.90 Field Voltage: 128V Field Current: 598A Weight: 83 ton Required cooling water: 160m3/h Lubricant: 110L/min Weight: approx.84ton



c. Steam Absorption Chiller Manufacturer: FCO Kawasaki (Japan)



Manufacturing year: August, 2020 Cooling capacity: 2462kW Cold water flow rate: 423.4m3/h Outlet temperature: 7°C Cooling water flow rate: 700m3/h Inlet temperature: 32°C Maximum steam consumption: 2695kg/h Steam inlet pressure: 0.785MPa (Gauge) Power: 440V, 60HZ
