Two ( 2) Mobile GE LM2500 GEN 1 , 18,000 K VA , 13,800v 60Hz.

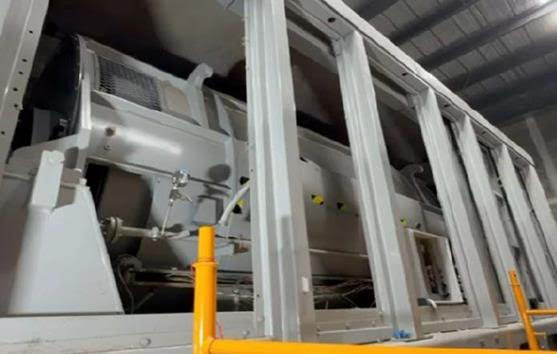

Two (2) Mobile GE LM25 00 Gen 1, 18 ,000 kVA, ISO, 13 , 8 00 v . 60 Hz. Trailer Mounted with an average of 7, 000 hours of use since last overhaul, fully inspected recently by a major USA turbine maintenance company. (control system needs to be upgraded)

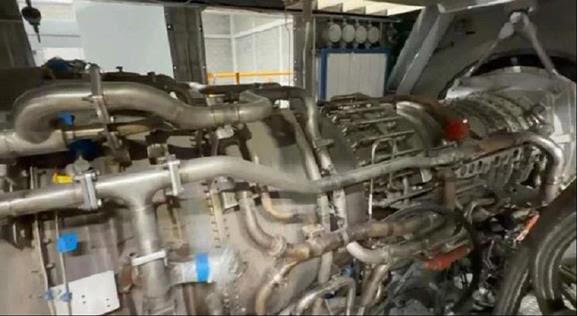

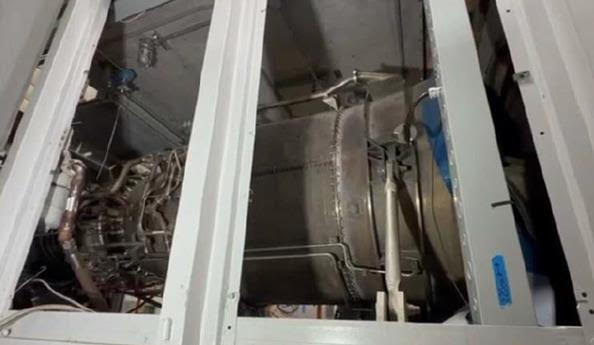

Gas Turbine: General Electric LM2500 PC



Coupling: Zurn Ameriflex Dry Diaphragm Type , Power Turbine to Generator Electric Machinery Mfg. Co.



Generator: 2 Pole 36 00 RPM, 60 Hz , Base Load Rating, ISO Continuos, 6 0 Hz, 0.90 P . F. Cranking System: DDA 6V53 Diesel with New York Air



Brake Hydrostatic Transmission



Switchgear: NEW - Brown - Boveri-Minimum Oil Type, 20kV, 1250 Amp, 750 MVA main circuit breaker



2-stage system: Fits Pre - filtrer ClearCurrent CS Panel Filter , 1 0 0% synthetic media, ABS frame, MERV8, G4 per EN779 -



Combustion Intake Air Filter: 2 0 12 , 24”x24”x2”; Final Filter ClearCurrent PRO HX, vcell, 1 00 %



Synthetic , Hydrophobic , MERV 15, F9 per EN779 - 2012, 24”x24”x17” Auxiliary Generator: 2 Cycle Diesel, 5 0 /67 KW, 48 0 V , 60 Hz



Control Power: 24 VDC



Fuel: Light Distillate



Liquid Fuel System: Fuel Pump, Filter, Fuel Control Valve, Fuel SO Valve, Flow Meter Lube Oil System: GT Lube Oil Tank 6 00 L , w/GT Driven Lube Pump



Generator Lube Oil Tank 8 00 L , w/Gen . Shaft dr . Pump Fire Protection System: SIMPLEX FM2 00



Water Wash System: Cleaning Tank, Nozzle Spray Manifold



Hydraulic Starter: Hydraulic Lube Tank 15 0 L, Charge Pump, Circulation Pump, Filter, Hydraulic Oil Cooler, Electric Motor



Combustor: Single Annular Combustor



Fuel Nozzles: 30



Fuel System: Designed for light distillate having a flash point of 115F or higher . Included are preheat and running heating system for higher pour point distillates.



Control System: NEW - GE RX3I Job in Process Vibration Monitoring System: NEW GE RX3I Job in Process



PRICE PER UNIT: US $22,500,000 “AS IS, WHERE IS”
