Wartsila, W18V32, 2001, 36.45 MW Power Plant, 5 Units, 13800V, 60Hz

Reference YY-3644

Brand Wartsila

Model W18V32

Year built 2001

Condition Used

Quantity 5 machines



Overview

Status: available

Brand: Wartsila

Model: W18V32

Wattage: 7290 kW (9,776.1 hp)

Voltage: 13800 V

Year: 2001

Condition: used

Hours: 22000

Frequency: 60 Hz

Fuel: HFO

Generator type: ABB industry synchronous generator (8813 kVA)

Genset Running Hours

Genset 1: 21,280 hrs

Genset 2: 21,121 hrs

Genset 3: 21,054 hrs

Genset 4: 21,062 hrs

Genset 5: 21,044 hrs

General Specifications

Engine type: 4-stroke

Configuration: V-type with 18 cylinders

Bore and stroke: 320mm (12.6 in) bore and 400mm stroke

Displacement: approximately 32 liters per cylinder

Power output: ranges from 7 MW to 35 MW depending on the specific model and configuration

Speed: operates at 720 or 750 rpm

Fuel and Performance

Fuel type: primarily heavy fuel oil (HFO) with options for marine diesel oil (MDO) in some configurations

Fuel consumption: varies based on load; for instance, at full load, the fuel consumption can be around 185.6 g/kWh

HFO viscosity: typically around 140 cSt before entering the engine, with a maximum temperature before the engine of approximately 50°C (122°F)

Component Overview

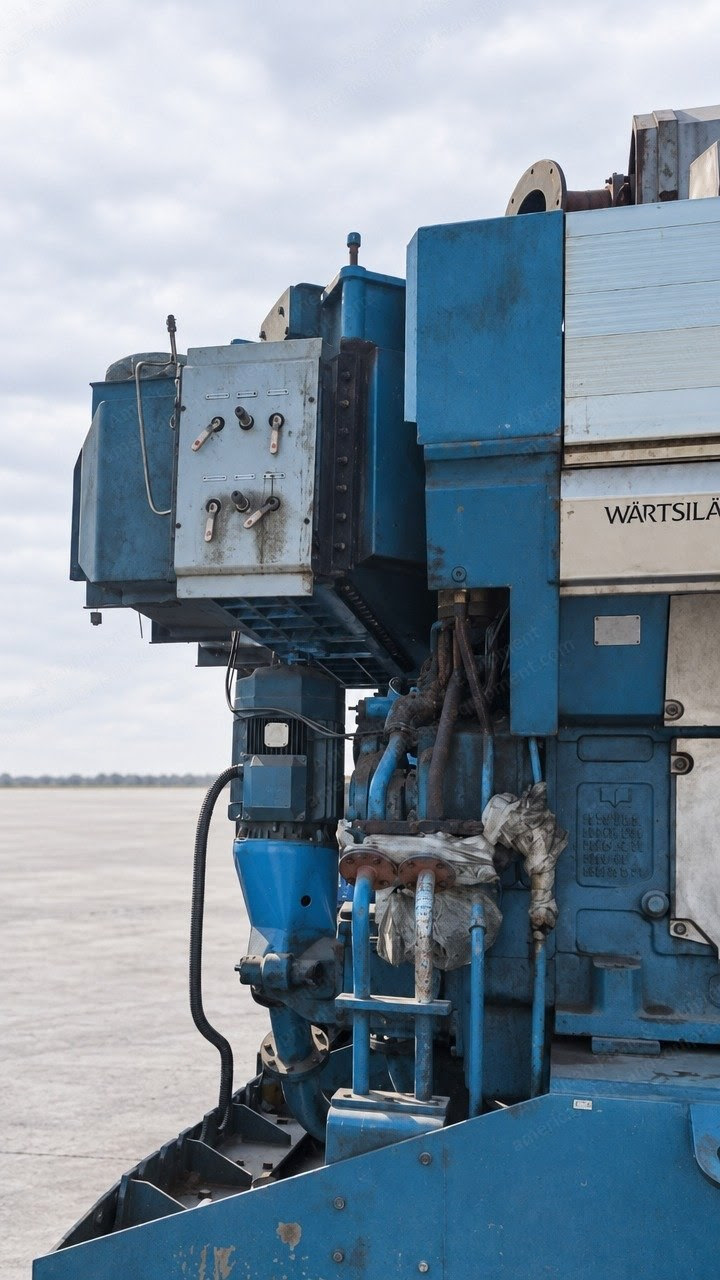

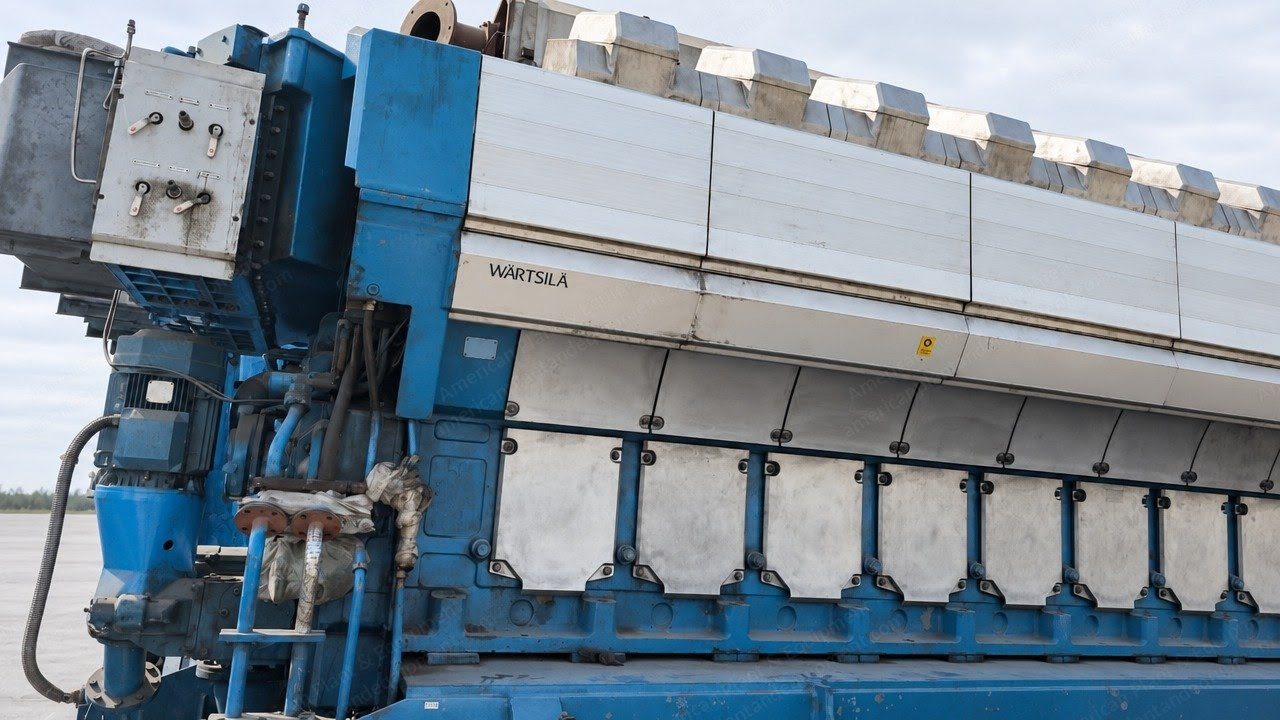

Engine: 5 pcs

Motor: 5 pcs

Engine bed: 5 pcs

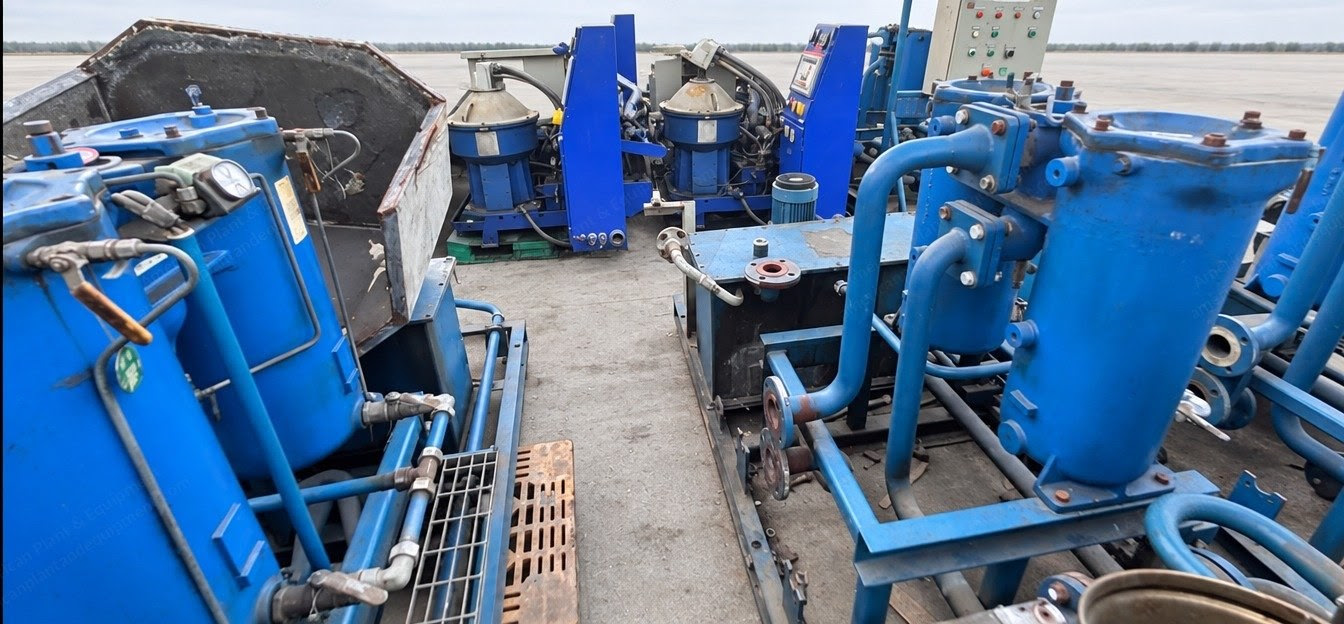

Purifier: 5 pcs

Filters: 5 pcs

Compressor Sperre HL2/77: 2 to 3 pcs

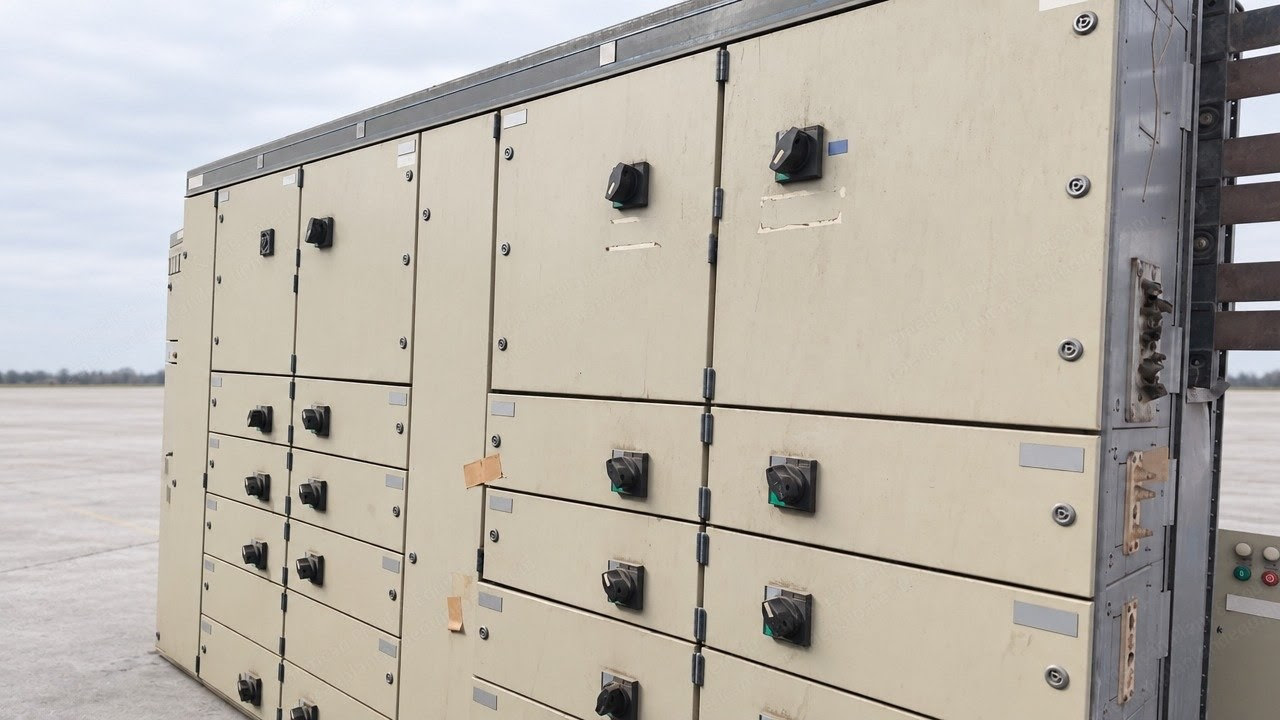

Mix control panels & electronics: 23 pcs

OMD: 5 pcs

Specifications

Capacity: 36.45 MW
