Solar Turbines, Taurus 60, 15 MW Total Power Station, 50 Hz, 3x 4700 kW Generator Packages



Reference J-5503

Brand Solar Turbines

Model Taurus 60

Condition Used

Quantity 3 machines

Overview

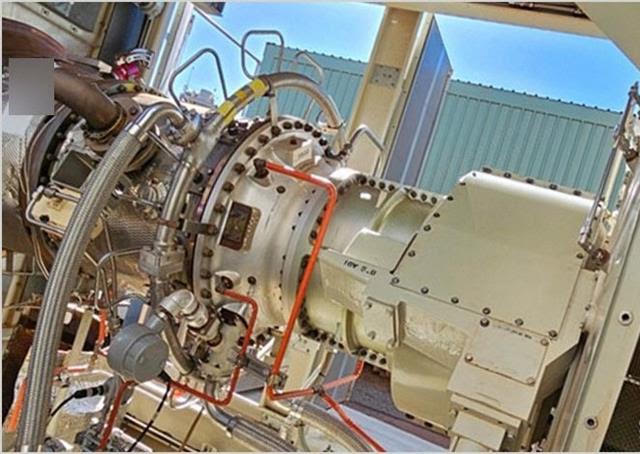

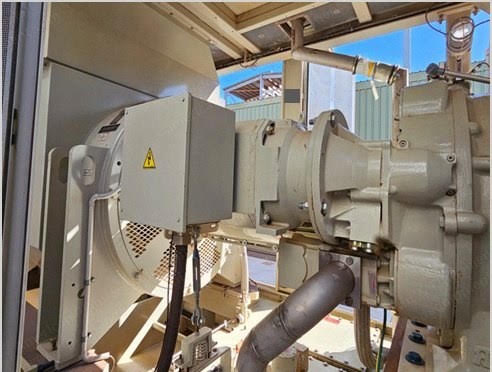

Total 15 MW composed of 3 Solar Turbines Taurus 60, 50 Hz generator packages.

3 x used gas only T60 7901.

Year: 2007, installed in 2009, mothballed and preserved 2011/2012.

Hours of operation: between 16,000 to 19,000.

History: from new, these have only 2 to 3 years (14,000 to 16,000 run hours) before the station was shut down and the units were put into preservation.

They are still the original engines supplied new from Solar Turbines at the time of commissioning and the entire package is in good to excellent condition.

Specifications

Turbine manufacturer: Solar.

Model: Taurus 60.

Variant: 7901.

Combustion: standard (non Solonox).

Fuel capability: natural gas.

Factor: 0.8.

Voltage: 11 kV.

Frequency: 50 Hz.

Speed: 1500 RPM.

Capacity: 15 MW Total (3x 4700 kW)

Generator make: Kato Engineering

Generator model: AA28019000

Nominal consumption: 63GJ/H (59MMBTU/H)

Condition

Used, though original engines and very good condition.

Package and turbine have been preserved, with preservation updates carried out yearly.

Included Equipment

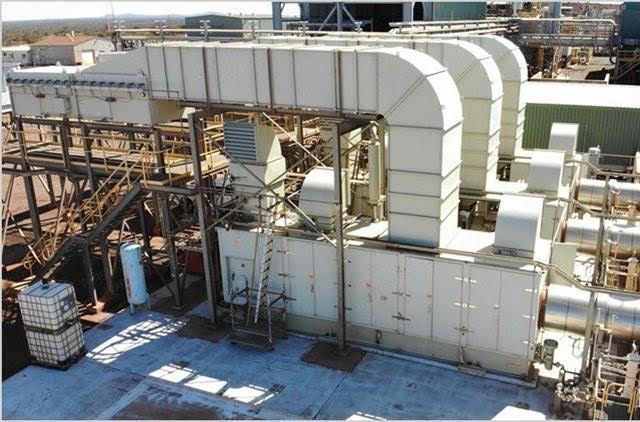

Scope of supply includes battery chargers, VFDs, engine removal frame and wash cart as well as auxiliary equipment such as air-compressors, air-inlet/filtration and exhaust stacks.

Availability and Logistics

The complete packages can be dismantled, packaged and prepared for shipping within approximately 3 to 4 weeks of commencement of on-site works.

Availability: requires dismantling, packaging and transport to port (2 to 3 month lead time).

---

---

---
