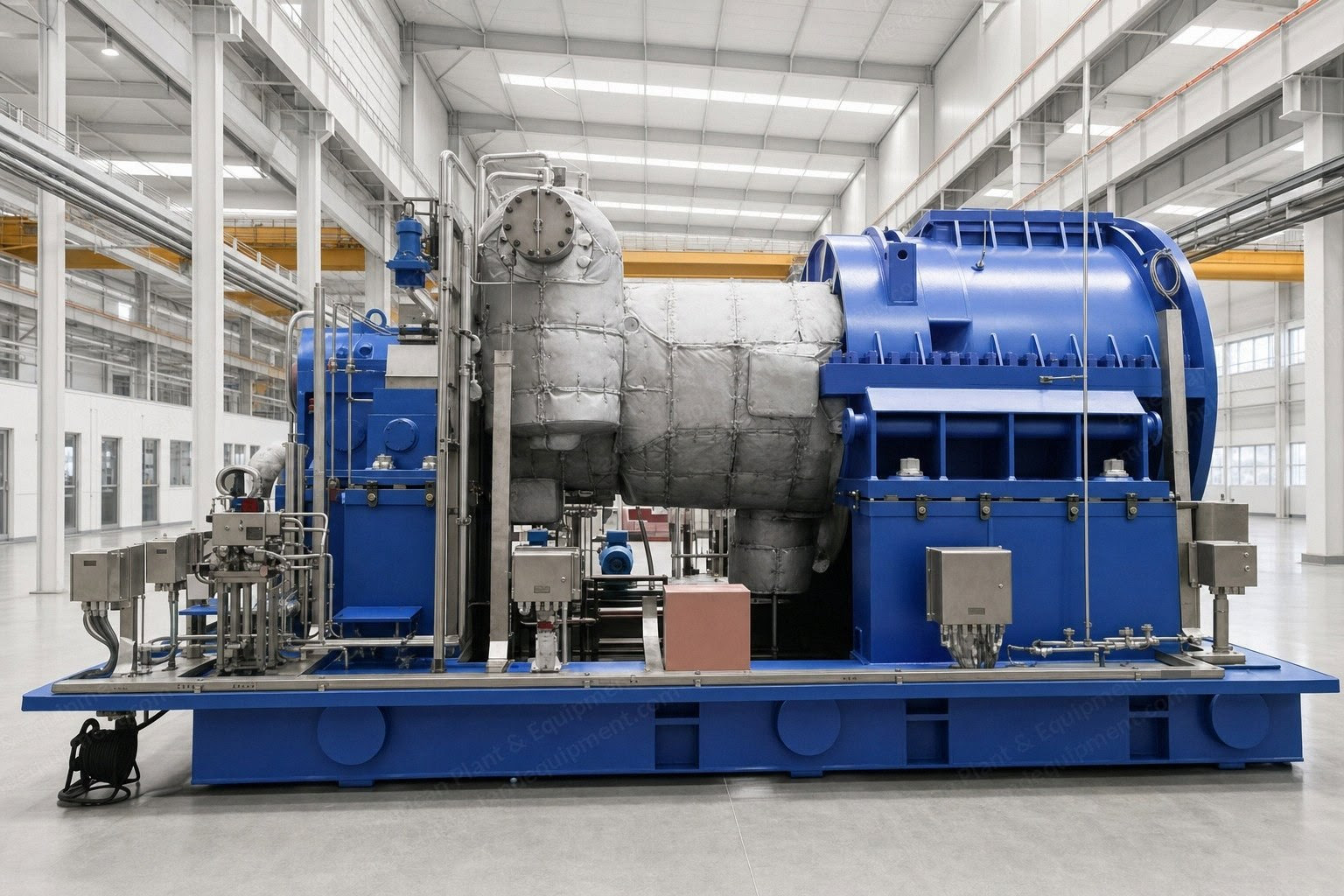

NovaStar, SS117, Back Pressure Steam Turbine Generator Unit, New, 6 MW, 13.8 kV, 60 Hz

Reference V-2334

Brand NovaStar

Model SS117

Condition New

Quantity 1 machine



New back pressure steam turbine generator unit, 6 MW, 13.8 kV, 60 Hz, built to order.



A. Main Parameters

Type: back pressure steam turbine, non-regenerative (no feedwater heating extraction)

Rated output: 6 MW (6,000 kW)

Inlet steam: 3.55 MPa, 400 °C (752 °F)

Exhaust back pressure: 0.2 MPa

Steam flow: 44 t/h

Specific steam consumption: 7.333 kg/kWh

Turbine speed: 6,500 rpm, with reduction gearbox to the generator

Generator: 6 MW, 13.8 kV, 60 Hz, 1,800 rpm, excitation system included

Approximate weight: 36 to 40 t

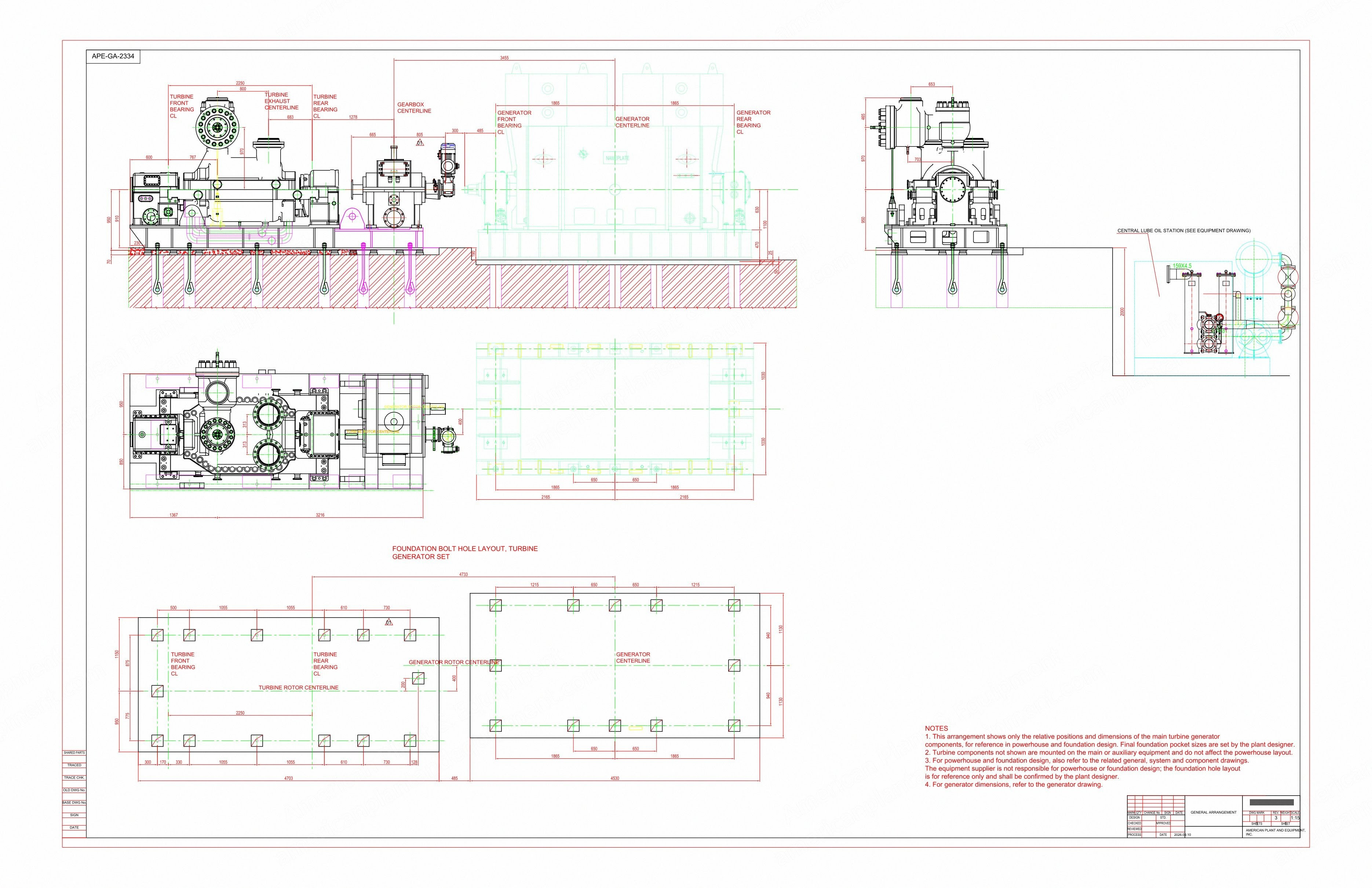

Dimensions: per general arrangement drawing, available on request

B. Scope of Supply

Back pressure steam turbine

Reduction gearbox

Centralized lube oil station

EH (electro-hydraulic) oil station

DEH digital electro-hydraulic control system with redundant controller

ETS emergency trip system

TSI turbine supervisory instrumentation

6 MW generator, 13.8 kV, 60 Hz, 1,800 rpm, with excitation system

Steam turbine no-load test run before shipment

Export packaging

C. Delivery and Service

Lead time: approximately 8 months from order (equipment)

Installation and commissioning supervision available on request
